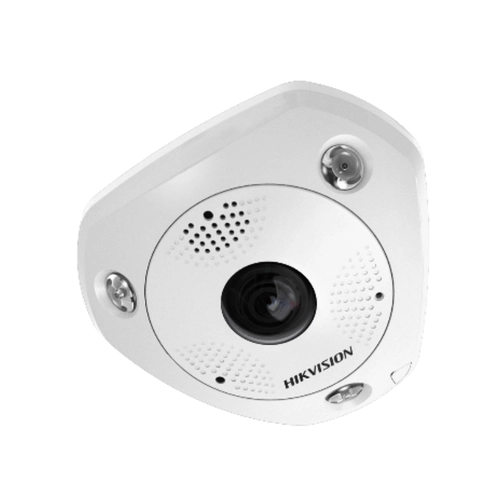

Câmera Ip Fisheye Hikvision 12Mp 1.29Mm 15 Metros Ds-2Cd63C5G0-Is

CÂMERA



• Sensor De Imagem: 1/1.7″ Progressive Scan CMOS
• Resolução Máx.: 4000 × 3000
• Iluminação Mínima: Color: 0.05 Lux @ (F2.2, AGC ON), B/W: 0.01 Lux @ (F2.2, AGC ON), 0 Lux with IR
• Tempo Do Obturador: 1 s to 1/100,000 s
• Dia E Noite: IR Cut Filter



---



LENTES



• Distância focal e FOV: 1.29 mm, Horizontal FOV: 180°, vertical FOV: 180°
• Montagem Da Lente: M12
• Abertura: F2.2



---



LUMINADOR



• Tipo De Luz Suplementar: 3 IR LEDs, each LED is independently controlled
• Faixa De Luz Suplementar: Up to 15 m
• IR Wavelength: 850 nm



---



VÍDEO



• Main Stream: 50 Hz: 20 fps (4000 × 3000), 25fps (3000 × 3000, 2560 × 2560) – 60 Hz: 20 fps (4000 × 3000), 30fps (3000 × 3000, 2560 × 2560)
• Sub-Stream: 50 Hz: 20 fps (720 × 720, 640 × 480) - 60 Hz: 20 fps (720 × 720, 640 × 480)
• Compressão De Vídeo: Main stream: H.265+/H.265/H.264+/H.264 - Sub stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• Tipo H.264: Baseline Profile/ Main Profile /High Profile
• Tipo H.265: Main Profile
• Codificação De Vídeo Escalável (SVC): H.265 and H.264 support
• Region De Interesse (ROI): 4 fixed regions for main stream





---



FISHEYE DISPLAY



• Tipo De Montagem: Support table, wall, and ceiling mounting
• Modo De Decodificação: Support hardware decoding and software decoding
• Modo De Exibição: 18 display modes in total - Software decoding: Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, hemisphere, AR hemisphere, cylinder - Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ - Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, cylinder
  Hardware decoding: Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion - Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion - Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion



---



ÁUDIO



• Compressão De Áudio: G.711/G.722.1/G.726/MP2L2/PCM
• Taxa De Bits De Áudio: 64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32-160 Kbps(MP2L2)
• Taxa De Amostragem De Áudio: 8 kHz/16 kHz
• Filtragem De Ruído Ambiente: Yes



---



REDE



• Protocolos: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• Visualização Ao Vivo Simultânea: Up to 20 channels
• API: ONVIF (PROFILE S, PROFILE G), ISAPI
• Usuário/Host: Up to 32 users. 3 user levels, administrator, operator and user
• Segurança: Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
• Armazenamento De Rede: MicroSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR
• Client: iVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200, Hik-Central
• Navegador Da Web: IE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+



---



IMAGEM



• Configurações de Imagens: Saturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
• Switch Dia/Noite: Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
• Wide Dynamic Range (WDR): Digital WDR
• Aprimoramento Da Imagem: BLC, HLC, defog, 3D DNR
• Sobreposição De Imagem: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format



---



INTERFACE



• Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
• Armazenamento A Bordo: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Áudio: 2 built-in microphones, 1 built-in speaker, mono sound / -S: 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm)
• Alarme: 1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A
• Reset Key: Yes



---



EVENTOS



• Eventos Básicos: Motion detection, video tampering alarm, exception (network disconnected, IP address conflicted, illegal login, HDD full, HDD error)
• Evento Inteligente: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection - Audio exception detection

---



FUNÇÃO DE APRENDIZADO PROFUNDO



• Contagem De Pessoas: Counts people entering, exiting and passing by separately - Supports real-time uploading and uploading by statistic cycle - Sends email reports on daily, weekly, monthly or annually basis - Supports target filtering by height
• Mapa Térmico: A graphic description of visits (calculated by people number or by dwell time) in a configured area. - Two heap map report types are available, space heat map and time heat map line chart
• Análise De Intersecção: Detects and analyze flow in an intersection-like scene, and generate reports - Support one intersection of up to 10 ways

---



GERAL



• Alimentação: 12 VDC±20%, 1 A, max. 12.5 W / -S model: two-core terminal block / Without –S model: Φ 5.5 × 2.1 mm coaxial power plug / PoE (802.3at, class 4, 42.5 to 57 V), 0.4 A to 0.3 A, max. 15 W
• Dimensões: Without –V model: 167.4 × 152.8 × 46.8 mm (6. 6" × 6\" × 1.8\") / With –V model: 167 × 152.8 × 55 mm (6. 6 × 6\" × 2.2\") " / Approx. 1400 g (3.09 lbs)
• Condições De Inicialização E Operação: -40 °C to +60 °C (-40 °F to +140 °F), Humidity 95% or less (non-condensing)
• Função Geral: One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Aquecedor: Yes



---



APROVAÇÃO



• Proteção: IP67, IK10
